FA-501

Specifications:

Maximum Output level:
     85 dBA (8’ Mounting Height, Tight Pattern)
Size:
     36” x 36” x 3.6” (915mm x 915mm x 92 mm)
Weight:
     31 Pounds (14 kg)
Color-Finish:
     Non-Reflective Black Powder Coat
     Black or White Cloth Covering
Input level:
     Adjustable -15DBV to +12DBV
Input impedance:
     5,000 Ohm Transformer Balanced or
     Unbalanced 3.5mm Jack
Focal Pattern:
     Adjustable from Tight to 10 Feet (3 Meter) Diameter
Mounting:
      Gripple Brand Suspension Cables or Threaded Inserts (1/4-20” or 6 mm)
Frequency Response:
See Frequency Response Chart
Frequency Compensation:
     Switch Selectable: Music, Voice with Music, Voice
Power:
     16 to 18 VAC or 24 VDC, 15 Watts
Connections:
     Screw Terminals on top side of unit

FA-501

Overhead Directional Speaker

36″ x 36″ (915mm x 915mm)

Best Sound Quality of any focused sound technology
Excellent Sound & Pattern Control Via onboard user interface
Not an ultrasonic Solution- No Safety concerns
Custom Configuration /Enclosure Cover colors available
Greatest low frequency capability in the industry
Built in Amplifier with balanced, line level input

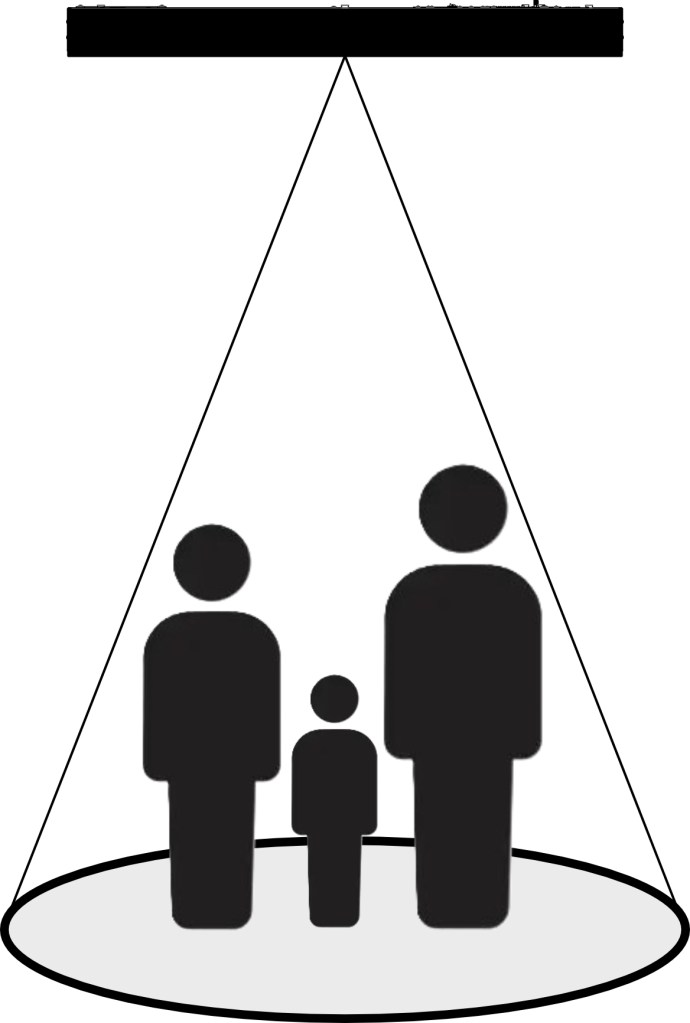

The FA-501 Directional Audio speaker array is the larger version of the FA-602. The FA-501 directs the audio signal straight down in a circular pattern (as compared to the FA-602’s that projects to the side at a 15 degree angle and has an oval coverage pattern.) The FA-501 provides high quality sound combined with excellent sound control. Dakota Audio FA-501 arrays are easily field adjustable for both mounting height and pattern width using the control panel. A switch controls a built-in equalizer with three preset adjustments to maximize the sound quality and directionality dependent on media type (Music, Voice with music, or Voice). Audio input is line level, transformer isolated. The array accepts any standard line level input, either balanced or unbalanced. A volume control and two position gain switch accommodate a wide range of audio input levels.
