MA-5 Mini Array

Specifications:

Maximum Output level:
     90DBA
Mini-Array Size:
     2” (50mm) D X 3.25” (83mm) H x Length
Standard Lengths:
     22” (558mm), 23” (584mm), 25” (635mm),
     30” (762mm), 36” (914mm), 38″ (965mm)

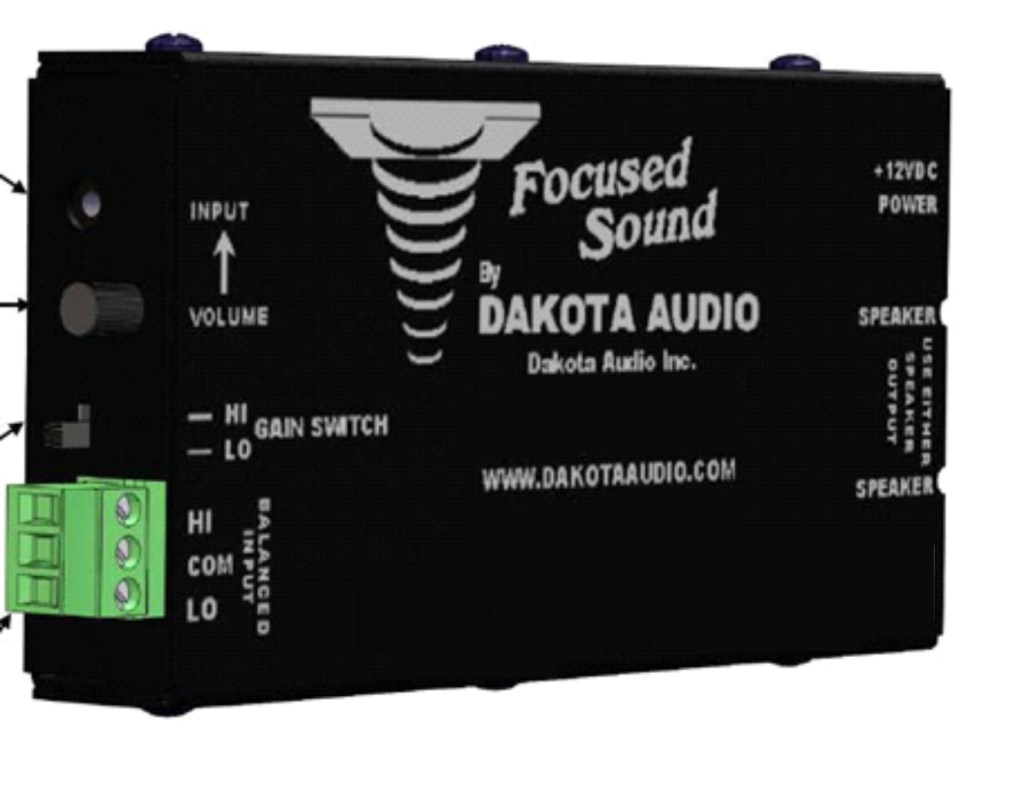

Amplifier Size:
     0.9” (22mm) x 7” (178mm) x 3.25” (82mm)
Color-Finish:
      Non-Reflective Black Powder Coat
Grill:
     Black Flame-Retardant Cloth
Input level:
     Adjustable -15DBV to +4DBV
Input impedance:
     5,000 Ohm Transformer Balanced or
     Unbalanced 3.5 Audio Jack
Focal Pattern:
     Highly Directional Side to Side
     with a Wide Vertical Pattern
Mounting:
     One Screw Mounting Hole at Each End
Frequency Response:
     Tailored For Voice Intelligibility 250HZ-10KHZ
Power:
     12 VDC, 10 Watts
     (Plug in Power Supply Included)
Connections:
     1/8” (3.5mm) Mini Jack (Female) & Screw Terminals

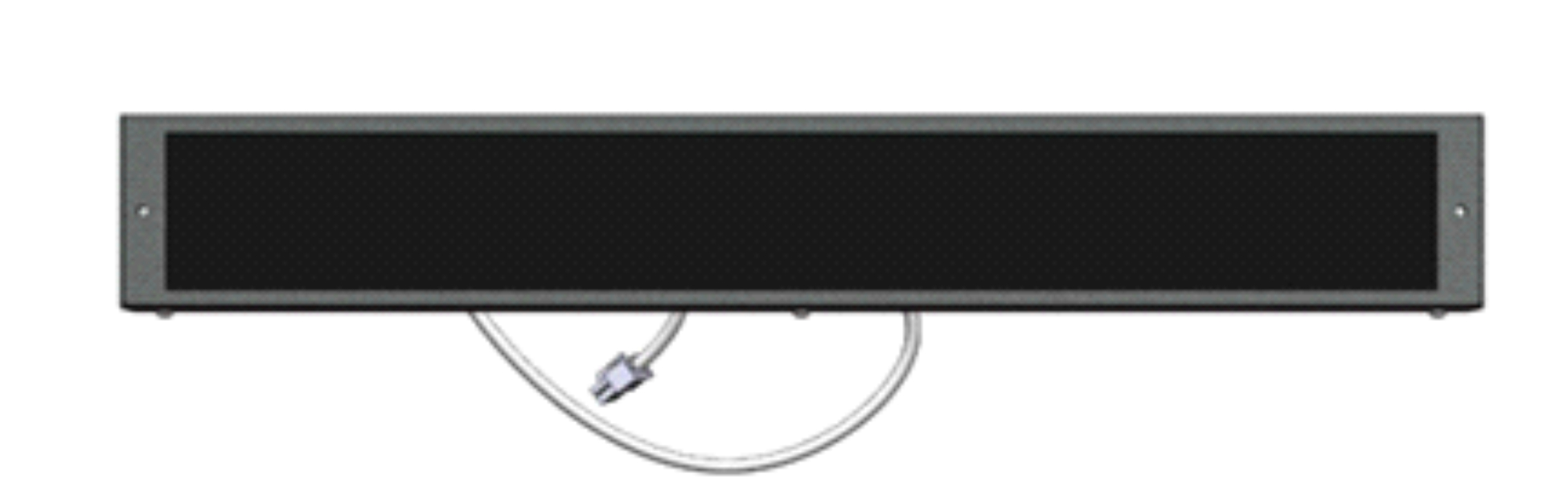

MA-5 Mini Array

Full Range Mini Array

2″ Depth x 3.25″ Height x (Length)

Standard Lengths:

22” (558mm), 23” (584mm), 25” (635mm), 30”(762mm), 36”(914mm), 38″ (965mm)

(Not available in 18″)

Part Number: MA-5-(length in Inches)

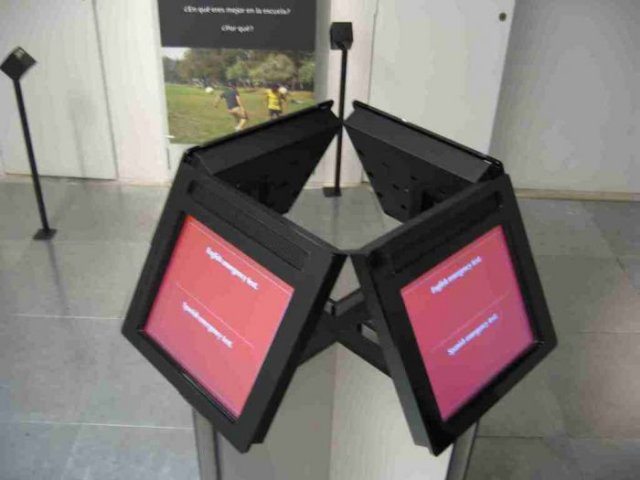

IDEAL FOR DIGITAL SIGNAGE, KIOSKS, TRADE SHOW EXHIBITS
HIGHLY DIRECTIONAL SIDE TO SIDE WITH WIDE VERTICAL PATTERN
BEST SOUND QUALITY OF ANY FOCUSED SOUND TECHNOLOGY
FULL RANGE SOUND VERSION OF THE MA-4
NOT AN ULTRASONIC SOLUTION-NO SAFETY CONCERNS
CUSTOM CONFIGURATION / ENCLOSURE COVER COLORS AVAILABLE
AMPLIFIER SUPPORTS BALANCED OR UNBALANCED LINE LEVEL INPUT

The Dakota Audio MA-5 arrays provide a broader sound range compared to the popular MA-4 Mini Array, with a frequency response optimized for voice. The MA Series delivers a highly directional side-to-side sound with a wide vertical pattern. This design ensures effective sonic isolation between displays while offering consistent coverage for listeners, regardless of their height. To accommodate size constraints, the amplifier is positioned remotely from the speaker array and connected by a 6′ multi-conductor cable. (included). (For maximum intelligibility or smaller size, please check out our MA-4 Series). The MA-5 units are usually mounted horizontally above or below a display or screen, but have other applications such being suspended overhead to provide a “path” of sound.
