MA-4 Mini Array

Specifications:

Maximum Output level:
     90DBA
Mini-Array Size:
     0.9” (22mm) D X 2” (50mm) H x Length
Standard Lengths :
     18″ (457mm), 22” (558mm), 23” (584mm),
     25” (635mm), 30”(762mm), 36”(914mm)
Amplifier Size:
     0.9” (22mm) x 7” (178mm) x 3.25” (82mm)
Color-Finish:
      Non-Reflective Black Powder Coat
Grill:
     Black Flame-Retardant Cloth
Input level:
     Adjustable -15DBV to +4DBV
Input impedance:
     5,000 Ohm Transformer Balanced or
    Unbalanced 3.5 Audio Jack
Focal Pattern:
     Highly Directional Side to Side
     with a Wide Vertical Pattern
Mounting:
     One Screw Mounting Hole at Each End
Frequency Reponse:
     See Technical Documents
Frequency Response:
     Tailored For Voice Intelligibility 250HZ-10KHZ
Power:
     12 VDC, 10 Watts
     (Plug in Power Supply Included)
Connections:
     1/8” (3.5mm) Mini Jack (Female) & Screw Terminals

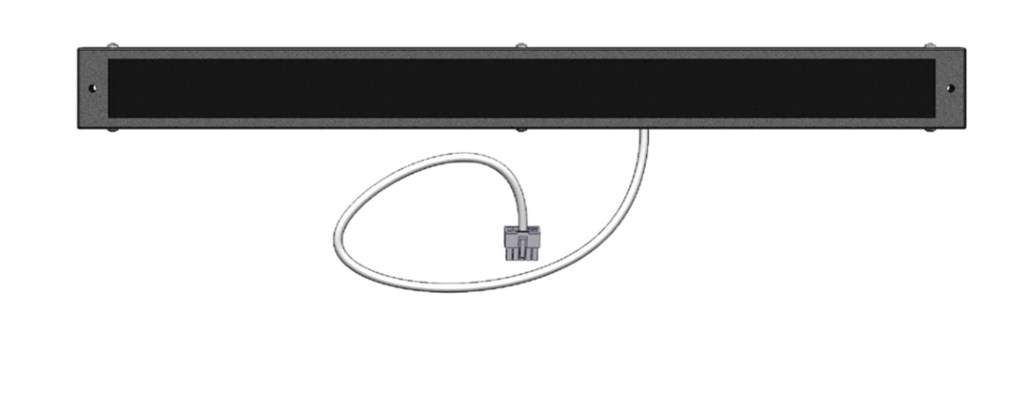

MA-4 Mini Array

Focused Mini Array

0.9″ Depth x 2″ Height x (Length)

Standard Lengths:

18″ (457mm), 22” (558mm), 23” (584mm),

25” (635mm), 30”(762mm), 36”(914mm)

Part Number: MA-4-(length in Inches)

IDEAL FOR DIGITAL SIGNAGE, KIOSKS, TRADE SHOW EXHIBITS
EXCELLENT VOICE INTELLIGIBILITY IN NOISY ENVIRONMENTS
HIGHLY DIRECTIONAL SIDE TO SIDE WITH WIDE VERTICAL PATTERN
BEST SOUND QUALITY OF ANY FOCUSED SOUND TECHNOLOGY
NOT AN ULTRASONIC SOLUTION-NO SAFETY CONCERNS
CUSTOM CONFIGURATION / ENCLOSURE COVER COLORS AVAILABLE
AMPLIFIER SUPPORTS BALANCED OR UNBALANCED LINE LEVEL INPUT

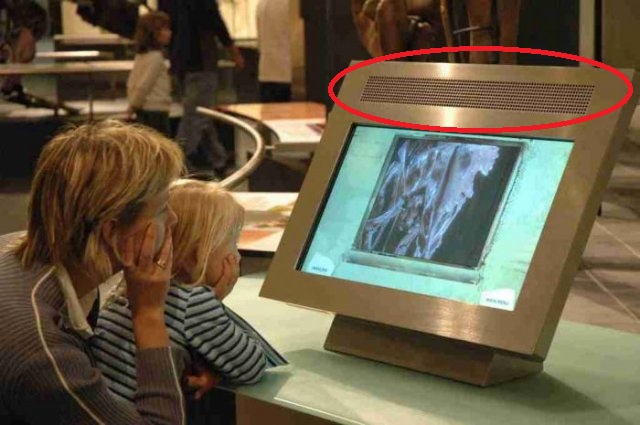

The Dakota Audio MA-4 provide excellent voice intelligibility, originally designed for children’s science museum, with a frequency response optimized for voice and incidental music. The MA-5 provides a broader sound range when needed. The MA Series delivers a highly directional side-to-side sound with a wide vertical pattern. This design ensures effective sonic isolation between displays while offering consistent coverage for listeners, regardless of their height. To accommodate size constraints, the amplifier is positioned remotely from the speaker array and connected by a 6′ multi-conductor cable. (included). (For maximum intelligibility or smaller size, please check out our MA-4 Series). The MA-5 units are usually mounted horizontally above or below a display or screen, but have other applications such being suspended overhead to provide a “path” of sound.
