FA-602

---

---

Overhead Directional Speaker

24″ x 24″ (609mm x 609mm)

---

---

• Best Sound Quality of any focused sound technology
• Excellent Sound & Pattern Control Via onboard user interface
• Not an ultrasonic Solution- No Safety concerns
• Custom Configuration /Enclosure Cover colors available
• Greatest low frequency capability in the industry
• Built in Amplifier with balanced, line level input

---

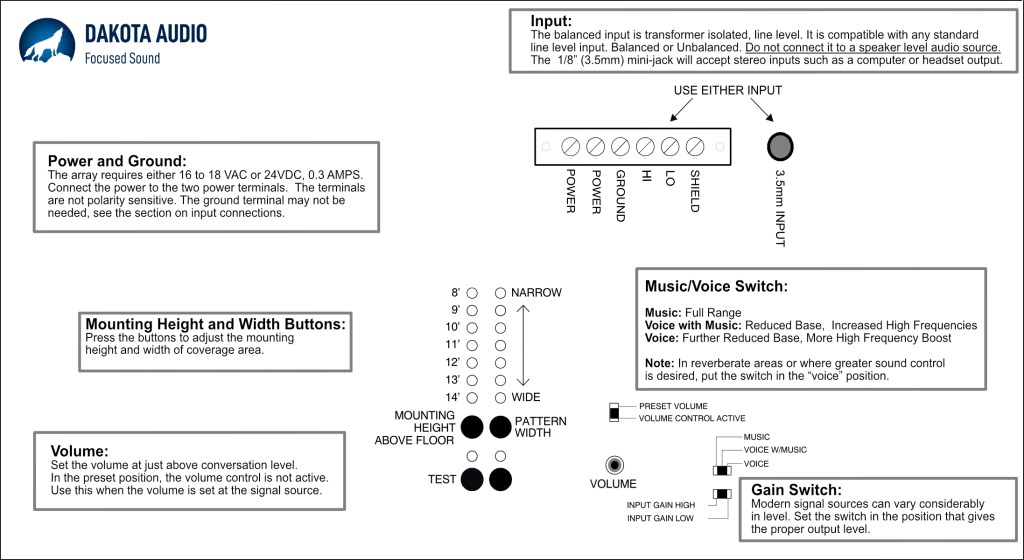

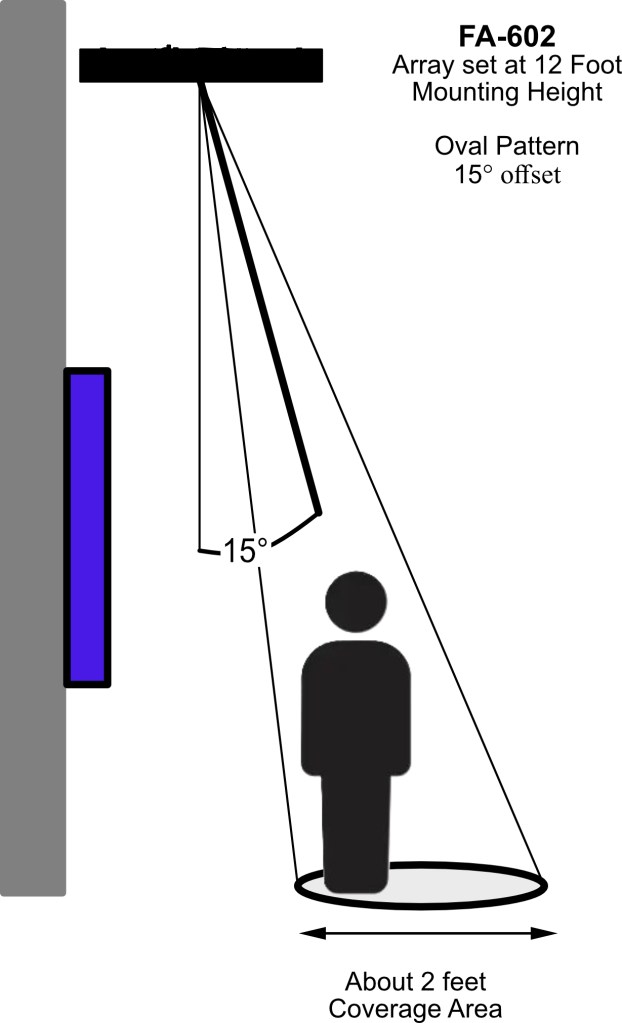

FA-602 Directional Audio array is the smaller version (24 inches square) of the FA-501. The FA-602 is unique in that it directs the audio signal at a fifteen-degree angle to one side of the focused speaker because of this it produces an oval sound pattern. The FA-602 provides high quality sound combined with excellent sound control. Dakota Audio FA-602 arrays are easily field adjustable for both mounting height and pattern width using the control panel on the back of the unit.  A switch controls a built-in equalizer with three preset adjustments to maximize the sound quality and directionality dependent on media type (Music, Voice with music, or Voice). Audio input is line level, transformer isolated. The array accepts any standard line level input, either balanced or unbalanced. A volume control and two position gain switch accommodate a wide range of audio input levels.

---

---

• 5 Year Warranty
• Technical Assistance Available
• Cable Kits Available Upon Request

---
